XFT-2001D Foot Drop Medical Therapy Solution for Dropped Foot after Stroke
Specifications
| Product Name: |
Foot Drop System Stim Unit |
| Classification: |
Type BF Equipment |
| Size: |
75mm (H) x 70mm (W) x 10mm (T)
|
| Weight: |
43g |
| Power Source: |
Rechargeable lithium battery
|
| Maximum Current: |
90 mA |
| Max Voltage: |
90V |
| Load impedance: |
500Ω
|
| Operation Modes: |
Training, Gait (Walking)
|
| Pulse Width : |
25-300 microseconds (Adjustable)
|
| Frequency Range |
16-33Hz (Adjustable)
|
| Stimulation Trigger Source: |
Tilt or Foot Sensor |
| Controls and Indicators: |
ON/OFF/Intensity; Stimulation, Gait/Training mode,Error
|
| Shipping and Storage Conditions : |
Transport and storage temperature: -20~55°C
Operating conditions temperature: 5~40°C
Humidity: 80% max., non-condensing
Atmospheric pressure: 70 KPa to 106 KPa
|
Indications
People who experience foot drop caused by upper motor neuron injuries or conditions such as:
- Stroke (CVA)
- Cerebral Palsy (CP)
- Incomplete spinal cord injury
- Traumatic Brain Injury (TBI)
- Multiple sclerosis
- Other central nervous system injuries
Features
- Two modes: gait and training
- Small and compact
- Easy operation (one-hand operation)
- Wireless gait detection insole
- One-time accurate electrode positioning
- Voluntary control and increase joint range of motion
- Advanced accelerometer to analyze the movement and stimulate the appropriate nerves
- Three comfortable sizes to choose

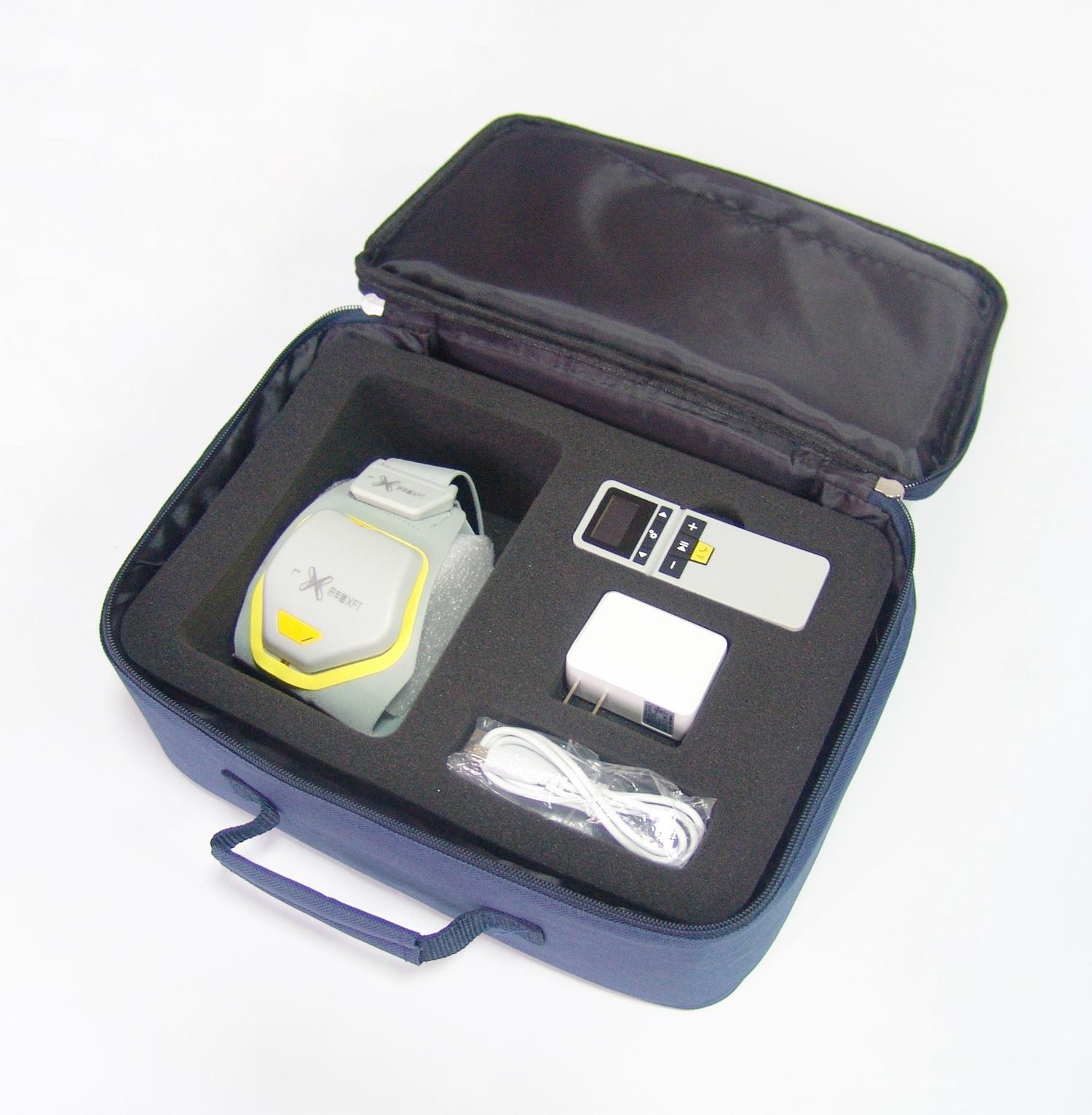

Parts and accessories
XFT Company Information
We are an ISO9001 & ISO13485 qualified manufacturer specialize in providing healthcare products, rehabilitation products and first aid training products for more than 10 years. Nearly all of our products got CE, ROHS certification and FDA registration. We export our products to all over the world.
XFT Exhibition Photos
Service
1. Professional manufacturer. Welcome to visit our website: www.xft-china.com
2. OEM/ODM service is available:
1) Customized logo on the products
2) Re-design the package
3) Customized function or outlook of the prdoduct
4) Any your idea on product we can help you to design and put it into production
3. High quality, fashion designs, reasonable & competitive price, fast lead time.
4. After-sale service:
1) All products will be strictly Quality Checked before packing
2) All products will be well packed before shipping
3) All our products have 1 year warranty.
5. Faster delivery:
Sample order will be delivered in 1-3 days , large quantity will be delivered in 5-12 days
6. Payment:
You can pay for the order via: T/T.
7. Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.
You also can choose your own shipping forwarder.
